Advanced Barcoder (Extension)

Advanced Barcoder (Extension)

Overview


The Advanced Barcoder is an extension in CustomBooks™ that enhances the standard barcode functionality by allowing users to scan multiple items and lot numbers directly into supported sales and purchase documents.

With this extension, users can quickly add items to transaction documents using a compatible barcode scanner without manually searching for and selecting each item. Each time an item is scanned, its quantity automatically increases by one. Users can continuously scan items without clicking the Add button between scans.

The Advanced Barcoder helps improve inventory management efficiency, reduce manual data entry, and ensure more accurate transaction records, particularly when processing multiple items during receiving, purchasing, or sales transactions.


Key Features of Advanced Barcoder


  • Multiple Item Scanning: Scan multiple items consecutively into supported transaction documents.

  • Automatic Quantity Increment: Each successful scan increases the item's quantity by one.

  • Continuous Scanning: Scan items one after another without clicking the Add button between scans.

  • Lot Number Support: Scan lot numbers in the same manner as individual items.

  • Easy Installation: Install the extension directly from the CustomBooks™ Extensions Store.

  • Item Information Recognition: Automatically identifies items using their assigned UPC codes.


Installing the Advanced Barcoder Extension


To install the Advanced Barcoder extension:

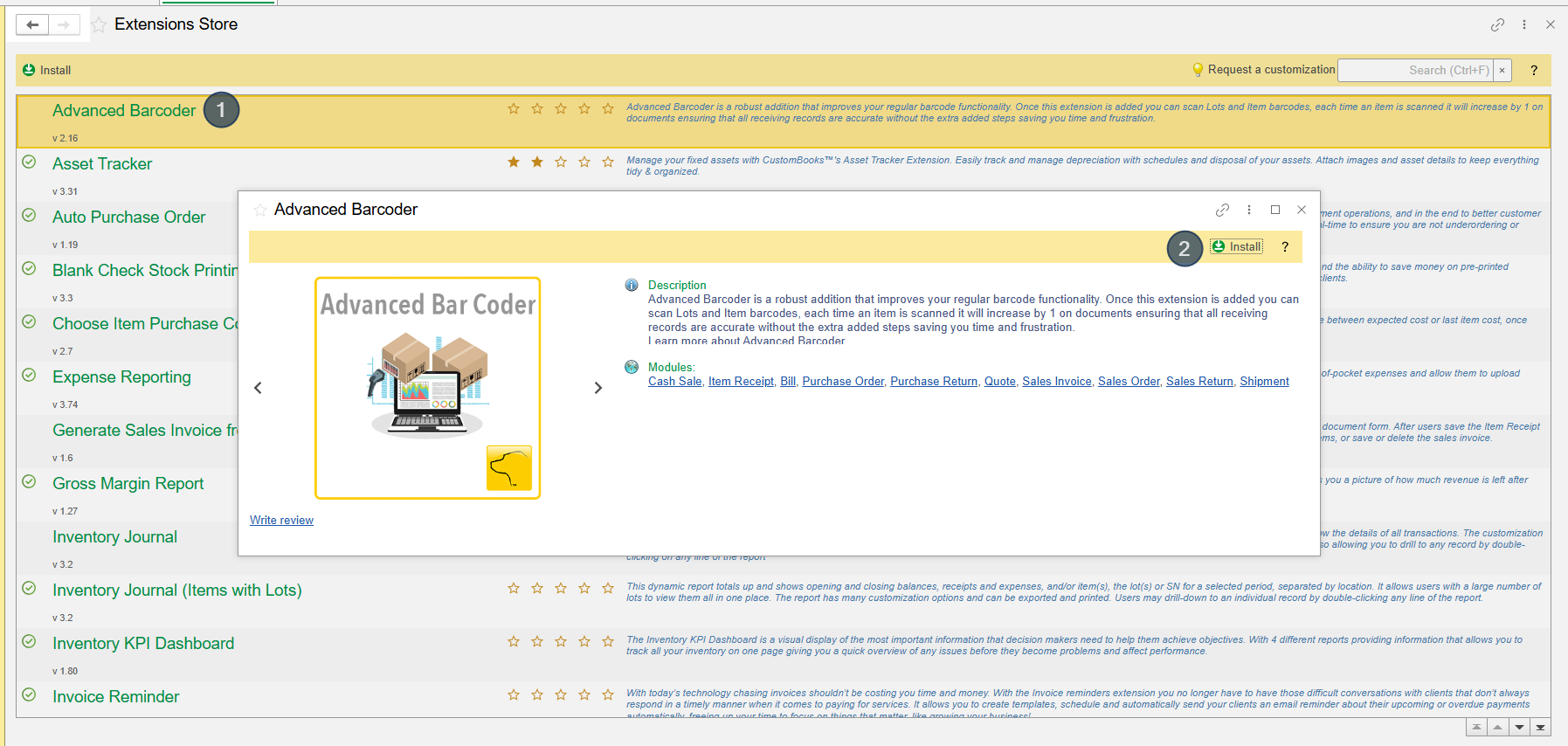

  1. From the left-side menu, navigate to Extensions → Extension Store.

  2. Locate Advanced Barcoder from the list of available extensions.

  3. Double-click the Advanced Barcoder extension to open its details.

  4. Review the extension description and supported modules.

  5. Click Install in the upper-right corner of the extension details window.


Once installed, the extension will be available in the supported transaction documents.


Barcode Scanner Requirements


To use the Advanced Barcoder extension, you must have a compatible barcode scanner connected to your computer.

For proper compatibility and reliable scanning, the following scanner specifications are recommended:

Requirement
Specification
Scanner Type
2D area imager supporting both 1D and 2D barcodes
Barcode Formats
EAN-8, EAN-13, Code 39, Code 128, QR Code, DataMatrix, PDF417, and GS1 DataMatrix
Connection
Wired USB, Bluetooth HID, or wireless with USB HID receiver
Mandatory Operating Mode
HID keyboard emulation (keyboard wedge)

Important: The barcode scanner must support HID keyboard emulation (keyboard wedge) mode. In this mode, the scanner functions like a keyboard and sends the scanned barcode directly into the active input field in CustomBooks™.
Make sure the scanner is properly connected and configured before using the Advanced Barcoder extension.

Setting Up Items for Barcode Scanning


Before scanning items into a transaction document, each item must have a UPC (Universal Product Code) assigned in its Item Card. The Advanced Barcoder uses this code to identify and match scanned barcodes with the corresponding item records.

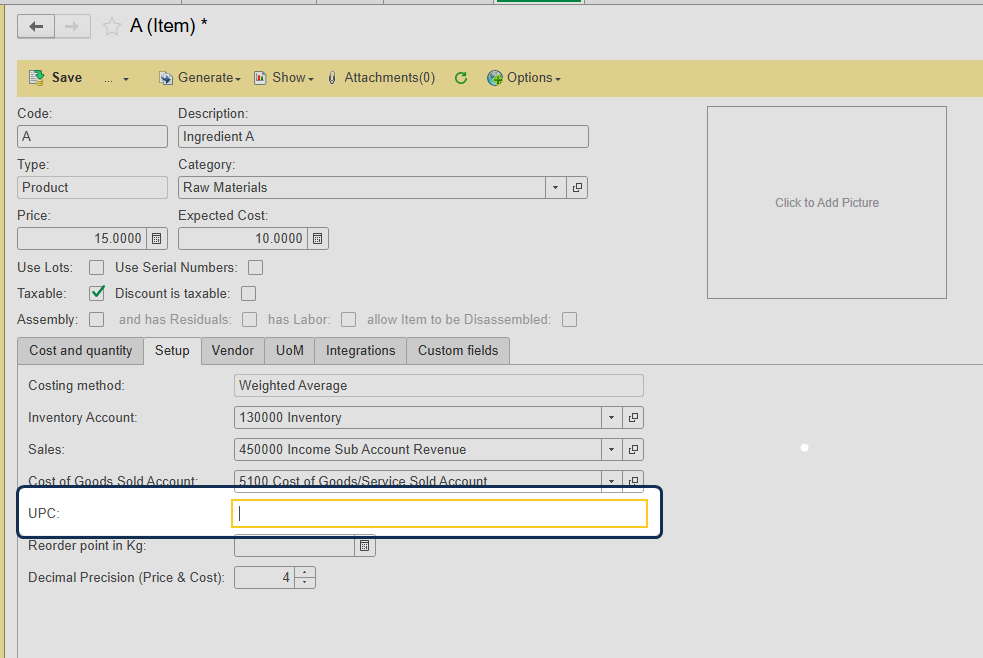

To enter a UPC:

  1. Navigate to Lists → Items.

  2. Locate and open the item you want to configure.

  3. Go to the Setup tab.

  4. Locate the UPC field.

  5. Enter the item's barcode or UPC number.

  6. Click Save.

Repeat these steps for all items that you want to scan using the Advanced Barcoder.

Note: Make sure the UPC entered in the Item Card matches the barcode assigned to the physical product. Items without a corresponding UPC cannot be identified through barcode scanning.

Using the Advanced Barcoder


The Advanced Barcoder is available in the following transaction documents:

Purchase Documents
  • Purchase Orders

  • Item Receipts

  • Bills

  • Purchase Returns

Sales Documents
  • Quotes

  • Sales Orders

  • Shipments

  • Sales Invoices

  • Credit Memos

  • Cash Sales

Scanning Items

To scan items into a transaction document:
  1. Open or create a supported transaction document.

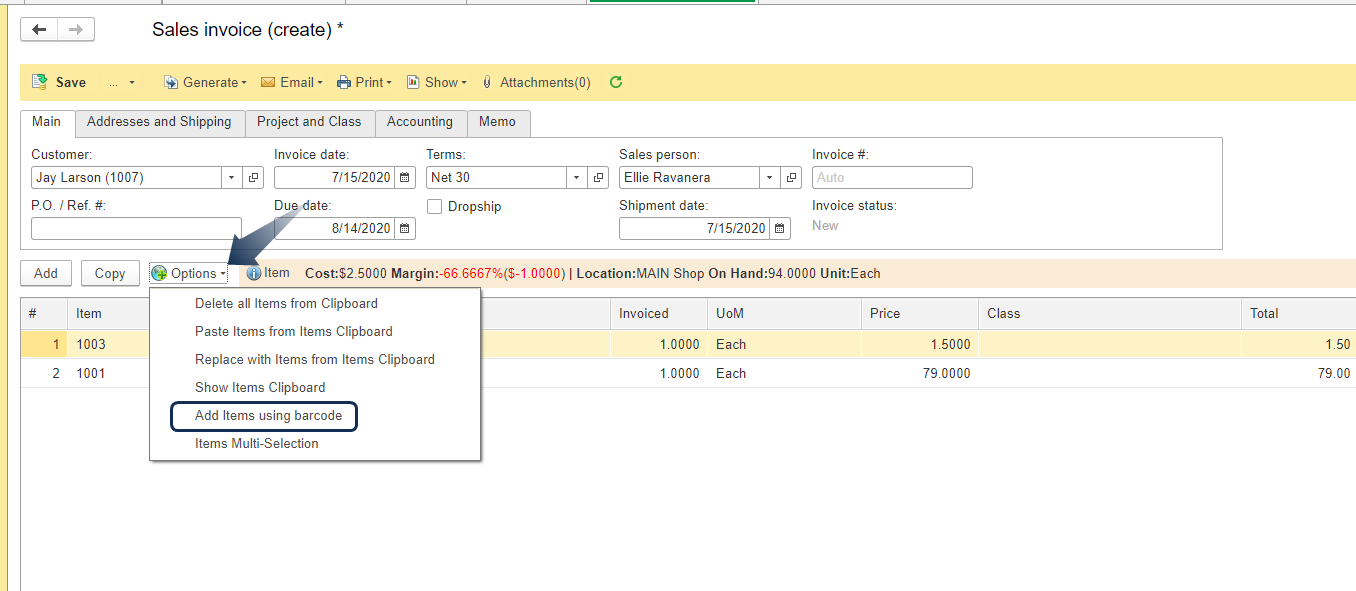

  2. In the line-item section, locate the Options dropdown menu beside the Add and Copy buttons.

  3. Click Options.

  4. Select Add Items using barcode from the dropdown menu.

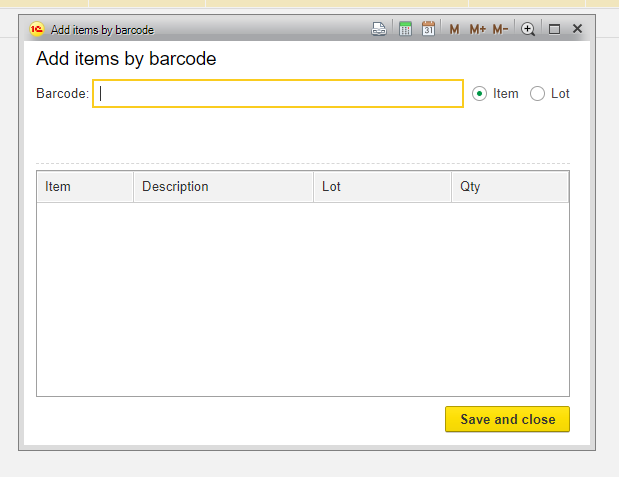

  1. A barcode scanning window will appear.

  2. Make sure your barcode scanner is connected and ready to use.

  3. Scan the barcode of the item you want to add.

  4. Continue scanning additional items as needed.

Each successful scan automatically adds the corresponding item to the transaction document. If the same item is scanned multiple times, its quantity automatically increases by one for each successful scan.

You do not need to click the Add button between scans. Simply scan one item after another.



Scanning Lot Numbers

The Advanced Barcoder also supports scanning lot numbers.

When scanning lot-tracked items, you can scan the corresponding lot number using the same barcode scanning process. This allows users to capture item and lot information more efficiently when processing supported inventory transactions.


Make sure the relevant item and lot information are properly configured in CustomBooks™ before scanning.
​

Important Reminders


  • Install the Advanced Barcoder extension before attempting to use its barcode scanning functionality.

  • Ensure that the barcode scanner supports the required HID keyboard emulation mode.

  • Verify that the scanner is properly connected to your computer.

  • Enter the correct UPC code in the Setup tab of each Item Card before scanning.

  • Make sure the barcode on the physical product matches the UPC entered in CustomBooks™.

  • Each successful scan increases the item's quantity by one.

  • You can scan multiple items consecutively without clicking Add between scans.

  • For lot-tracked items, ensure that the corresponding lot information is available in CustomBooks™.

Troubleshooting Barcode Scanning


If the Advanced Barcoder does not recognize a scanned item, check the following:

  1. Verify the UPC: Open the Item Card and confirm that the correct barcode is entered in the UPC field under the Setup tab.

  2. Check the Scanner Connection: Make sure the barcode scanner is properly connected to your computer.

  3. Verify Scanner Mode: Confirm that the scanner is configured to use HID keyboard emulation (keyboard wedge) mode.

  4. Check Barcode Compatibility: Ensure that the scanner supports the barcode format being used.

  5. Test the Scanner: Check whether the scanner can successfully read the barcode and send the scanned value to an active text input field.

  6. Verify the Item Record: Make sure the item exists in CustomBooks™ and has the correct UPC assigned.

​
If the issue persists after completing these checks, contact CustomBooks™ Support for further assistance.
